tisdag 21 maj 2013

Fish tales

Finally ready for delivery. The last problem I found was the microswitch in the start button. Sometimes it didn’t make contact, even if it sounded and felt like it worked as I should.

lördag 18 maj 2013

Fish tales


The last parts arrived during the week and I have continued the assembly. I saw a picture on the net where they had used light blue rubbers at the entrance of the boat, and I thought it looked good, so I tested it at this game. I’m not sure of what the owner thinks about it… I also saw a picture of a Fish tales with green flipper rubbers. This looked really good together with the yellow flipper bats and the yellow/green plastics to the left and right of the flippers. Unfortunately I haven’t found anywhere to buy green flipper rubbers, except on Ebay, but they got extremely expensive with the freight from the states.

måndag 13 maj 2013

Fish tales


The disassembly and cleaning of the playfield are ready. It got a first coat of wax while disassembled, while it is easy to access all areas and it will have a second coat later on. I have also started the assembly but stopped at the point at the picture. I do still need the drive belt of the fishing reel and a lamp holder for the center bumper. I’ll wait with the installation of the boat until the lamp holder has been changed. It’s much easier to work with the bumper while having a hole in the playfield to stick the hand through.

All parts that have been taken out of the playfield have been cleaned and polished before putting them back.


The boat was disassembled and cleaned

The Stretch the truth meter has got five new lamp rubbers. The middle one was of another shade than the other four and to make sure they all look the same I changed all five. I also changed the flasher to a yellow one. I’m not sure what it will look like when playing, but it is easy to change it back to a clear one if it doesn’t look good.

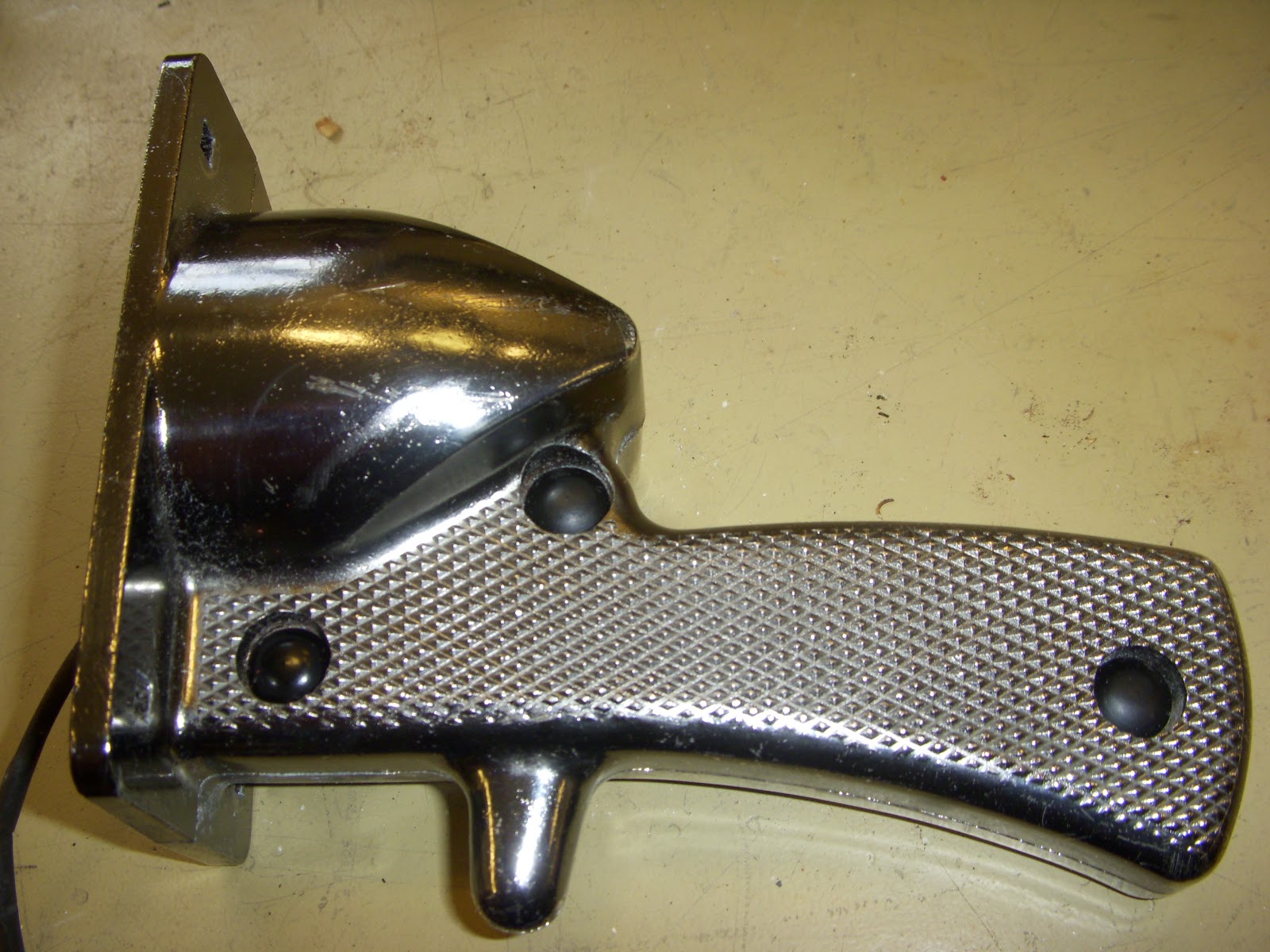

The button at the fishing rod handle was lose so I took the handle apart to fasten it. At the same time I polished the handle.  The screws holding the two parts together were quite rusty so I repainted them satin black.

The plastic ramp is cleaned and polished. It is cracked by one of the screw holes, the right side of the upper left entrance. It was mounted using a pair of washers clamping the ramp in place. I will put it back I the same way since a new ramp is quite expensive.




fredag 3 maj 2013

Fish tales


I’m now almost ready with the disassembly of the playfield and there are a lot of parts to clean and polish at the workbench.


I found some new surprises today, the eject hole base are cracked and must be changed. Also the fish reel drive belt is a bit suspicious. The rubber material is quite thin at a little bit, to the left at the picture. I will change the belt to make sure not having to disassemble the reel unit once again in the near future.
